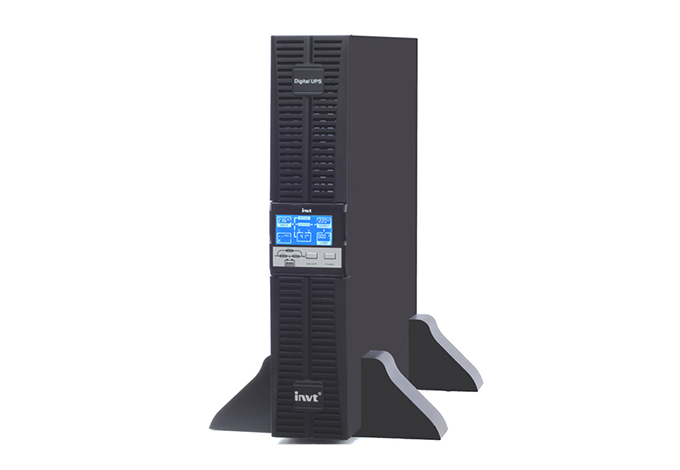

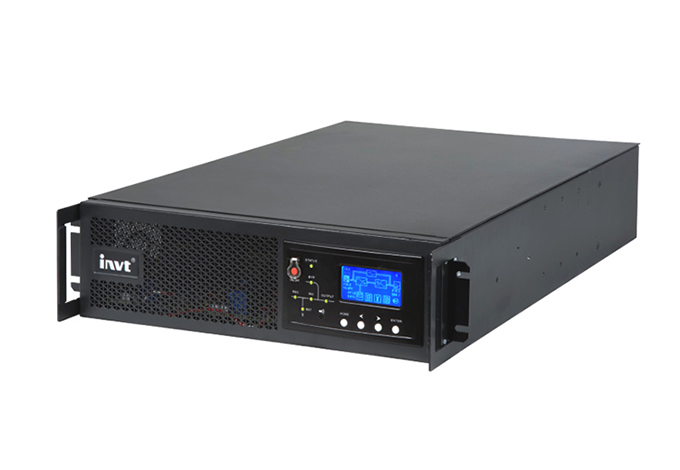

HR11 Series Rack Online UPS 1-10kVA (220V/230V/240V)
HR11 series, ranging from 1kVA to 10kVA, is double conversion online rack UPS with fully DSP controlled technology. The single phase of 6-10kVA UPS applies the advanced 3-level technology, achieving a efficiency up to 95%. With its compact design of high power density (kW=kVA) in 2U height, HR11 series make it ideal choice for computers, telecommunication equipment and other sensitive devices.
Application
IDC(Internet Data Center), network, servers and workstations, control system, communication system, office, PC etc.
Features
Common features for 1-10kVA
Wide range of input voltage while input PF>99%
19” standard cabinet and battery cabinet
Full protection of overvoltage, circuit short and over temperature
LCD/LED display, monitoring all the operation status
Automatic fan speed adjustment
Abundant interface: RS232,USB, SNMP, Intelligent Card
Unique features for 6-10kVA
High efficiency, up to 95%
kVA=kW, output PF=1
Intelligent charging management, effectively improving the life time of battery
3 level of technology, compatible with complicated load
